Electric Chain Hoist
Product Image

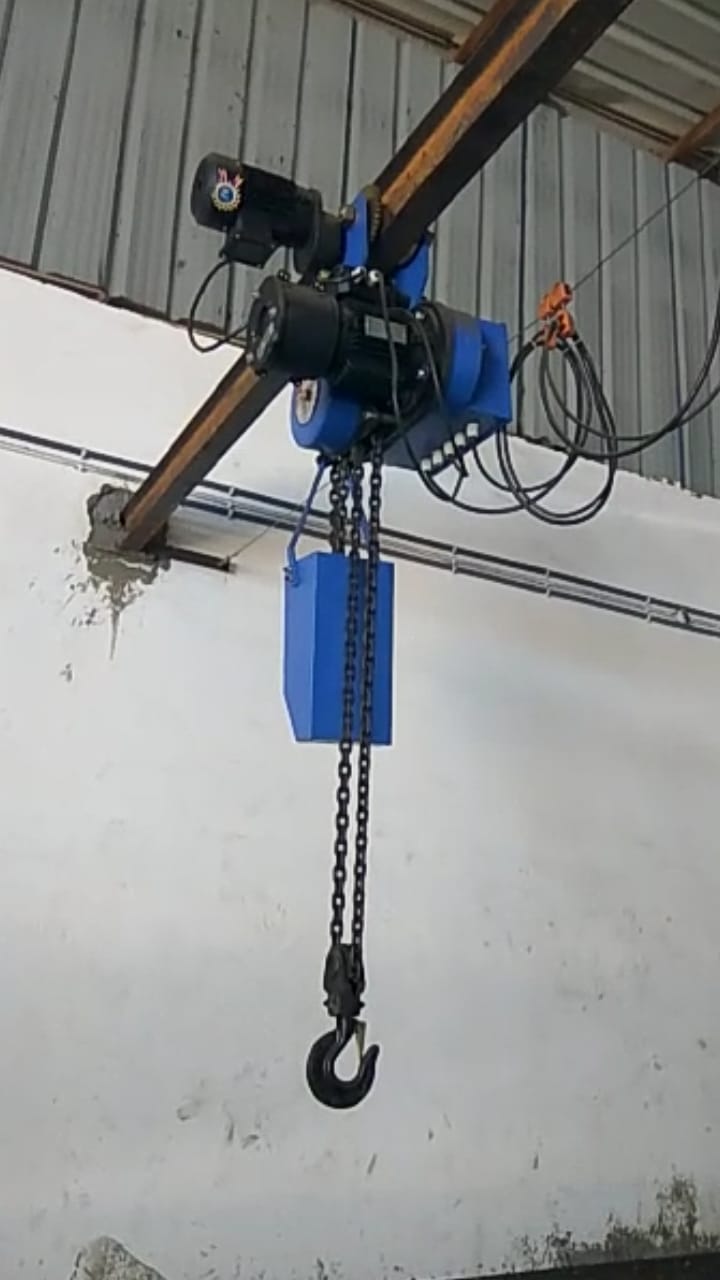

Chain Hoist with Electric Travelling Trolley
Product Image

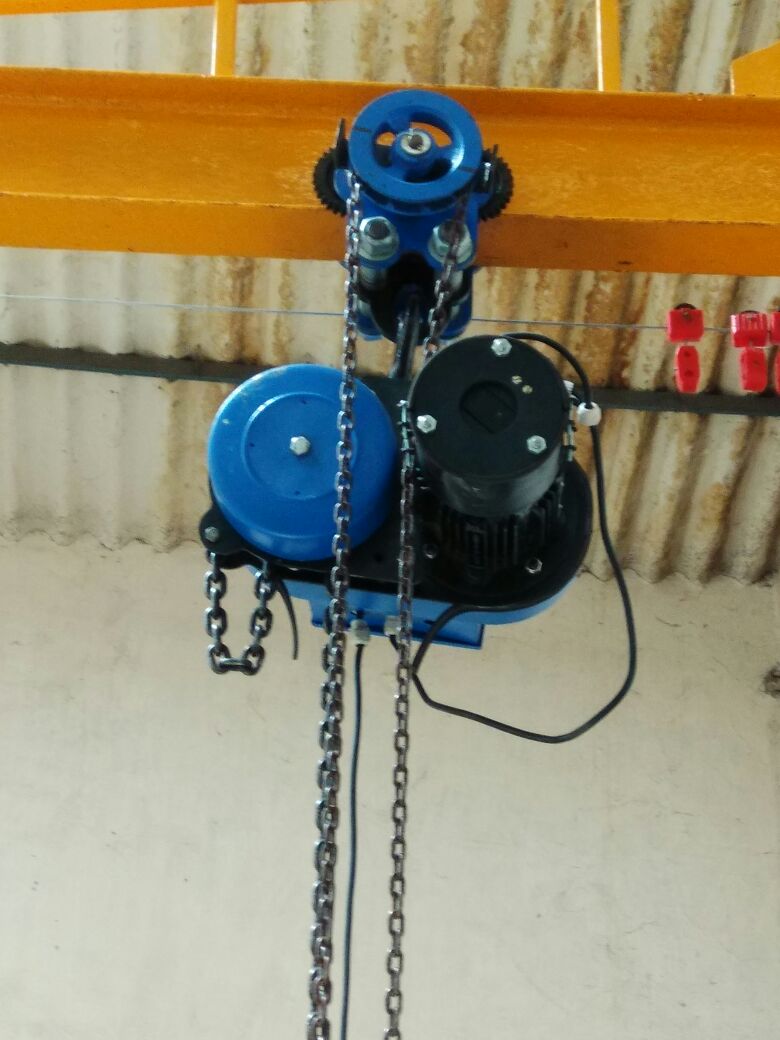

Chain Hoist with Geared Traveling Trolley
Product Image

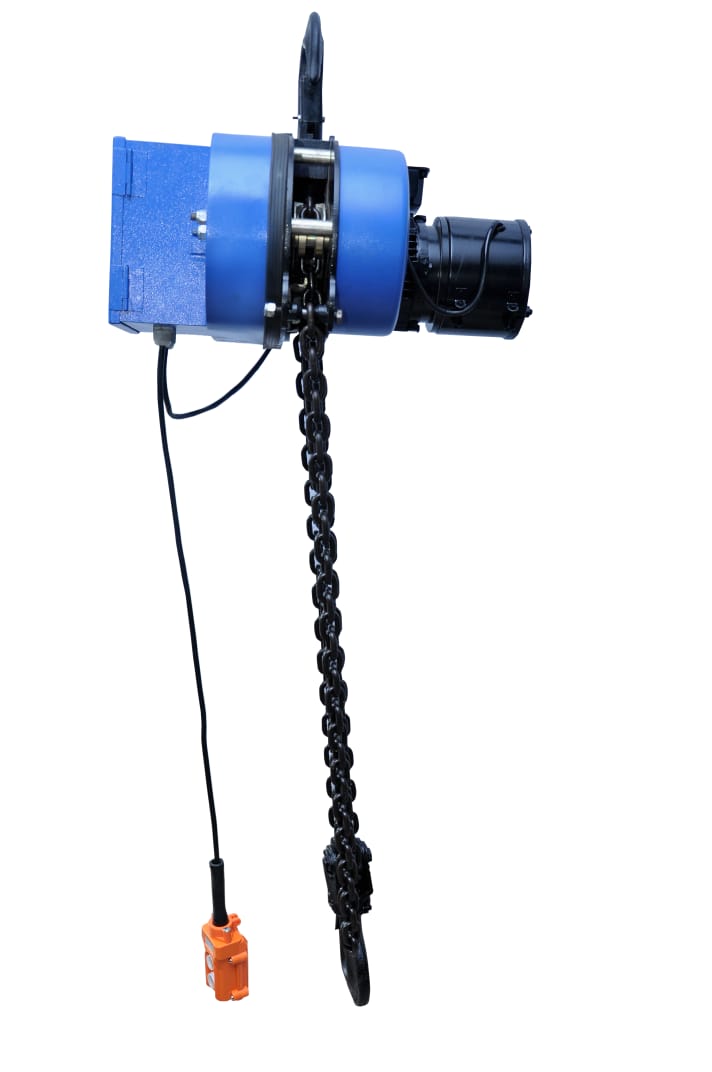

Chain Hoist with Hook Suspension
Product Image

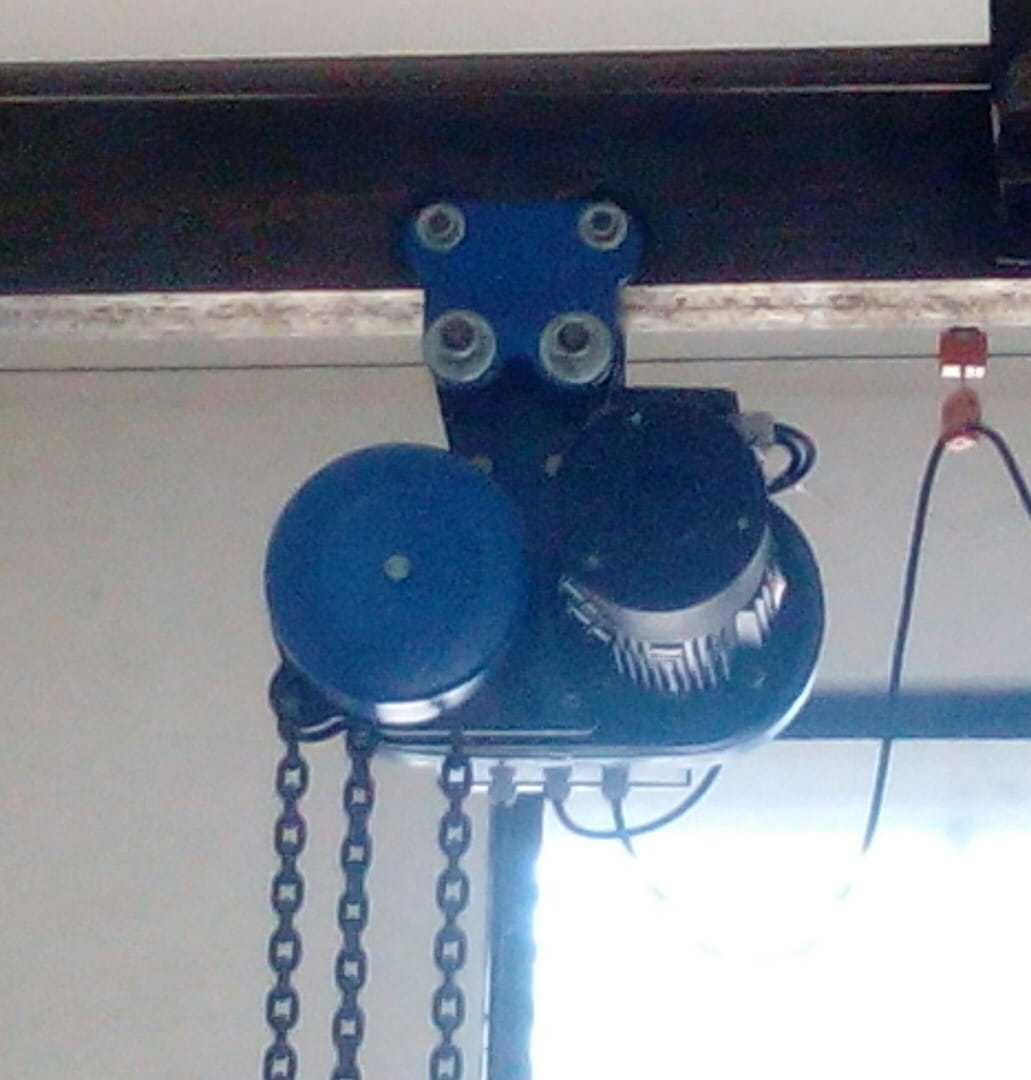

Chain Hoist with Push Pull Trolley

Electric Chain Hoist

* Light Weighted Simple Design for ease of Installation

* Edipped with a Built in Electrical Control Panel

* Anti Condrosive Powder Coated Zine Plated Body and Par

* Grade 80 Alloy Load Chain

* Electric Motor with Magnetic Brake 3 Phase

* Chain Sproket Type Drive

Capacity A B C D E
0.5T 410 480 31 380 480
1.0T 450 550 31 425 550
2.0T 500 550 37 425 550
2.0 T (9mm) 550 650 42 500 650
3.0T 550 650 42 500 650
3.0T(12mm) 580 650 51 500 650
5.0T 750 650 42 525 650
7.5T 900 700 67 525 700
10.0T 1000 730 75 525 730
Capacity 0.5 1.0 2.0 3.0 5.0 7.5 10.0
No. of Falls 1 1 2/1 2/1 2 3 4
Load Chain 80 Grade 8 8 8/9 9/12 12 12 12
Hoist Motor(HP) 0.5 1.0 1.0/1.5 2.0/3.0 3.0 5.0 5.0
Hoist Speed(MPM) 5.0 4.7 2.5/5.0 2.5/5.0 2.5 1.7 1.5
Weight At 3M Lift (Approx.) 45.0 50.0 55.0 100.0 110.0 140.0 150.0

All Purpose Motor Electric Chain Hoist

* Manufactured In ISO 9001: 2008 Certified Company Assured Quality & Interchangeability Of Parts.

* Rugged European Design Assured Reliability

Compact Aluminum Motor Body Light Weight Precision Engineered

* Anti Corrosive Power Costed Finish Better Aesthetics

Imported Grade 80 Surface Hardened Load Chain For Strength & Wear Resistance Longer Chain Life

Built In Electrical Control Panel Ready To Use.

* Pendent Control Easy Of Usage

* Swiveling Bottom Block Free Rotation Handling Of Loads

Precision Machine Cut Cash Hardened Alloy Steel Gears And Load Chain Wheel Long Lift, noiseless Operation

Capacity A B C D E
0.5T 420 280 300 300 500
1.0T 450 280 300 300 550
2.0T 500 360 350 350 550
2.0 T (9mm) 550 360 350 350 650
3.0T 600 360 370 370 650
3.0T(12mm) 600 360 370 370 650
5.0T 750 420 450 450 650
7.5T 900 420 450 450 700
10.0T 1000 730 75 525 730
Capacity 0.5 1.0 2.0 3.0 5.0 7.5 10.0
No. of Falls 1 1 2/1 2/1 2 3 4
Load Chain 80 Grade 8 8 8/9 9/12 12 12 12
Hoist Motor(HP) 0.5 1.0 1.0/1.5 2.0/3.0 3.0 5.0 5.0
Hoist Speed(MPM) 5.0 4.7 2.5/5.0 2.5/5.0 2.5 1.7 1.5
CT Motor(HP) 0.25 0.25 0.25 0.5 0.75 1.0 1.0
CT Speed(MPM) 13.0 13.0 13.0 10.0 10.0 10.0 10.0
Weight At 3M Lift (Approx.) 55.0 65.0 70.0 130.0 150.0 180.0 200

ADD ON FEATURE

* Remote Contrl VVVF Drive

* Special Lower Blocks

*Multipale Hoist Tandem

* Automated oueration
