Load Monitoring Systems

introduction

EReal-time load monitoring is crucial when handling heavy loads, as users may sometimes exceed the rated capacity, leading to potential accidents. This is where Crosby | Straightpoint devices play a vital role. With Bluetooth connectivity, users can effortlessly monitor loads in real time through iOS and Android applications. Now, let’s explore our offerings in the Load Monitoring Systems category.

Kito India offers 3 different types of Load Monitoring Systems.

  • Radiolink Plus
  • Wireless Loadshackles
  • Loadsafe Compression Loadcell

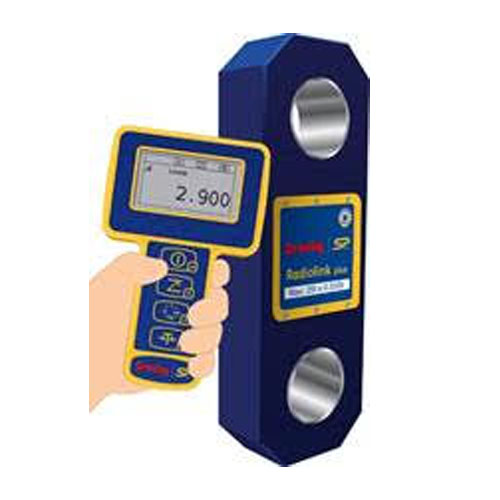

1. Radiolink Plus

  • Weighing and dynamic load monitoring capacities range from 1 ton to 100 ton.
  • Constructed from lightweight, aerospace-grade aluminum and sealed to IP67 or NEMA6 for protection.
  • Features a proprietary 2.4 GHz wireless system with an update rate of 3Hz, configurable up to 200Hz and offers an accuracy of ± 0.1% full scale (FS).
  • Remote on/off functionality through a handheld display or software, compatible with ATEX Zones 0, 1, and 2.
  • Includes a Bluetooth option with a free HHP app for iOS and Android devices.

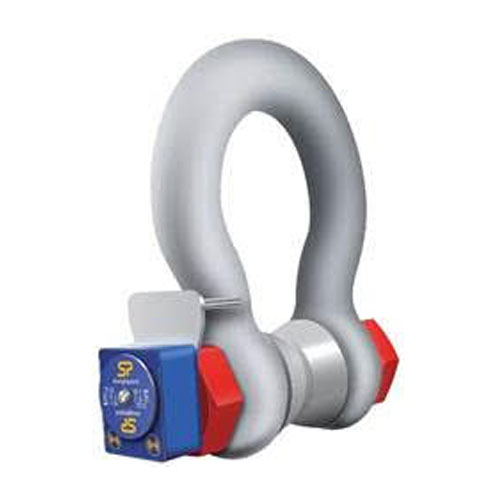

2. Wireless Loadshackles

  • Load capacities of 6.5 ton and 12 ton, with options up to 3000 tons.
  • Features a wireless range of 1000 meters (3280 feet) and proof-tested for reliability.
  • Electronics are housed in a hard anodized, environmentally sealed enclosure (IP67 or NEMA6).
  • Powered by 4 AA batteries, offering 1200 hours of battery life, with an internal antenna and remote on/off function and offers an accuracy of ± 1% full scale (FS).
  • ATEX Zones 0, 1, and 2 compatibility, with a Bluetooth option and free HHP app for iOS and Android.

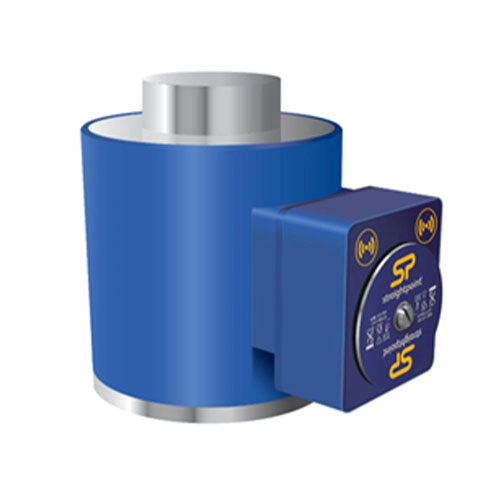

3. Loadsafe Compression Loadcell

  • Industry-leading wireless range of up to 1000 meters (3280 feet) with 5 ton capacity and constructed from high-grade 17-4PH stainless steel for strength and corrosion resistance.
  • Operates with a proprietary 2.4 GHz wireless system and offers an accuracy of ±0.1% full scale (FS).
  • Environmentally sealed to IP67 or NEMA6 standards, with stocked capacities up to 1000 tons and an internal antenna.
  • Available in ATEX and IECEx versions for hazardous area zones 0, 1, and 2, with 1200 hours of battery life and a compact design.
  • Remote on/off functionality, FEA-validated design, and an optional Bluetooth connection with a free HHP app for iOS and Android devices.
