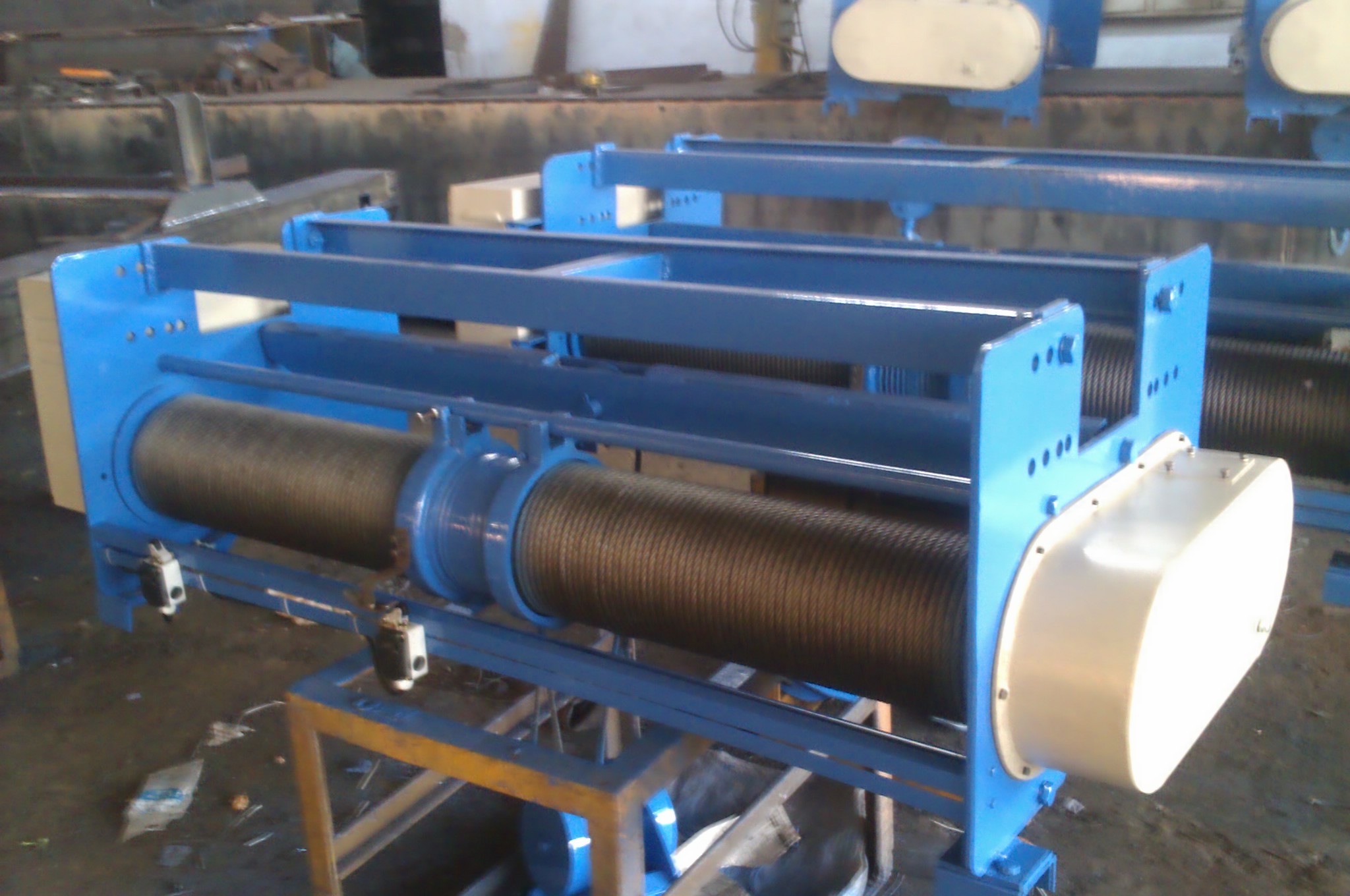

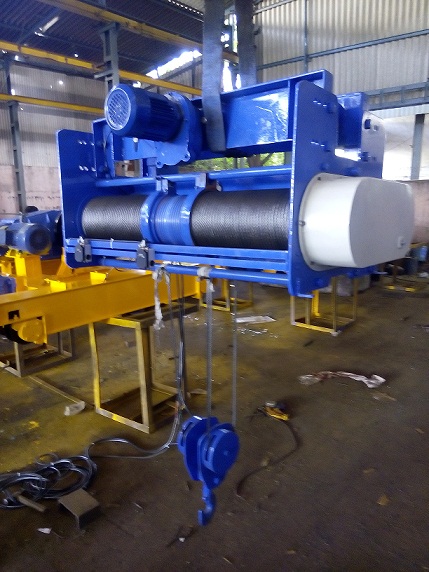

Wire Rope Hoist

Manufacturing Range:

Capacity : 0.5 Ton to 20 Tons

Lift : 0.5 Mtrs. to 40 Mtrs.

DESIGN FEATURES & SPECIFICATION:

SUMO hoist is very compact in design with elegant appearance. The hoist is modular construction which simplifies repairs & maintenance. The various parts like motors, gear box, control panel etc. are easily accessible. The hoist gear train is with precision hob cut helical / spur gears having hardness up to 250 to 300 BHN running on bearings housed in sheet metal cover with gasket & lubricated with oil bath lubrications. The rope drum is made from M.S. seamless pipe having machined cut spiral grooves & mounted on self aligning bearings. Rope guide will be provided for perfect sitting of rope in drum grooves. Electro magnetic FAIL to SAFE type brake is provided on hoisting motion which ensures perfect safety even in case of power failure. Limit switches are provided to prevent over hoisting & over lowering

SUMO Wire rope hoists are designed in modular construction which greatly simplifies repairs & cuts break down time. The special features are low head - room, spur / helical gears running on antifriction ball bearings with oil bath lubrication, motors confirming to IS 325, " fail to safe " brakes which automatically operate in case of any power failure, tested wire rope confirming to IS 2266, forged hooks conforming to IS 3815 and push button stations operating at step down voltage of 110 V, 42 V or 24 V.

SUMO Hoists are designed in accordance with IS: 3938 – 1979 and are compact, rugged & elegant in appearance. To accommodate specific requirements, SUMO hoists can also be built with micro (creep) speed arrangements (10% of normal hoisting speed), flexible trolleys to negotiate small radius; high speeds & high lifts; hoists suitable for steel mill duty; foundries & Chemical Plants.

OPTIONAL FEATURES

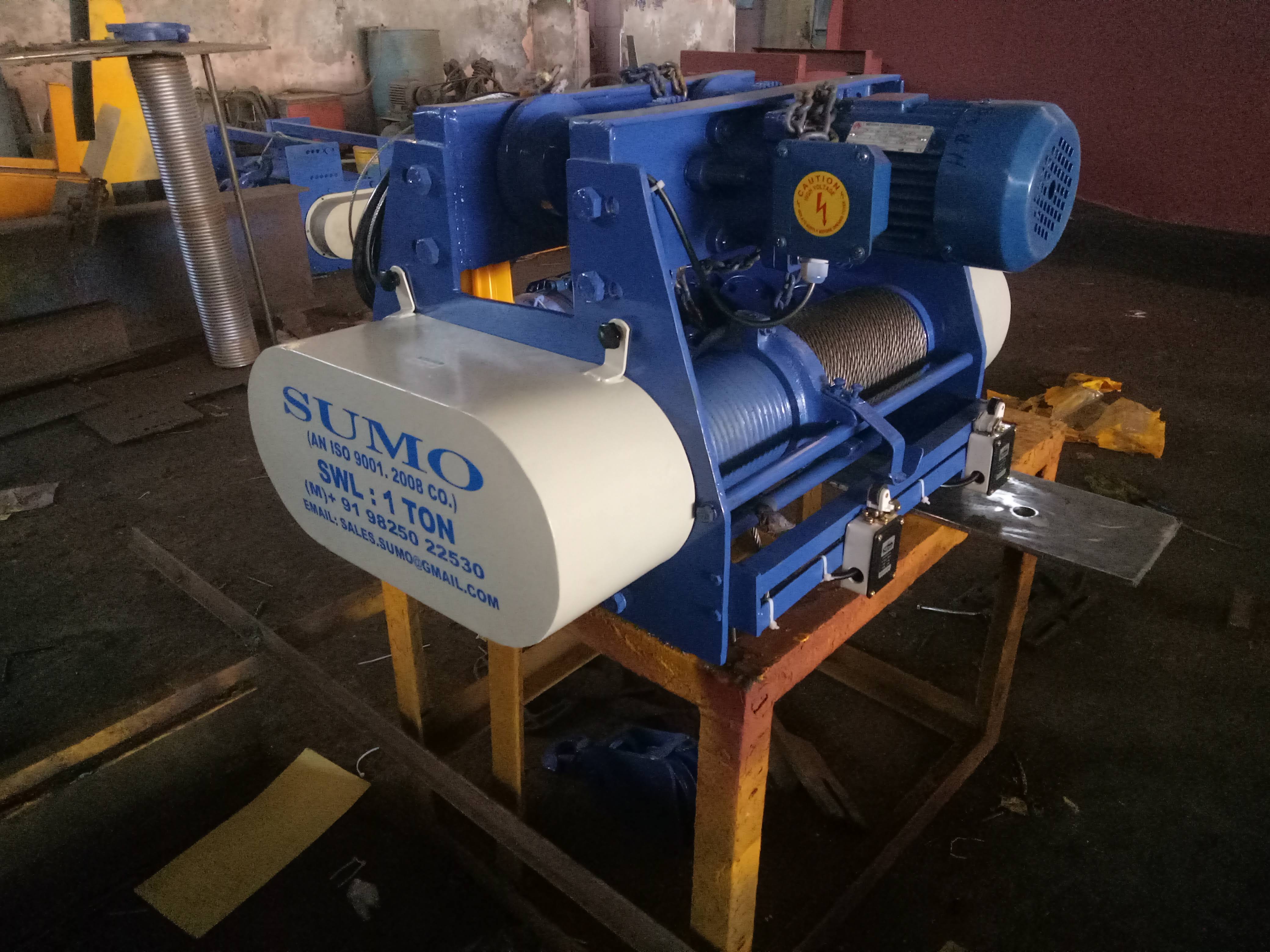

Electrical Operated Cross Travelling Trolley for straight or curved path

VVF drive

Wireless Radio remote control

Double speed – creep / micro.

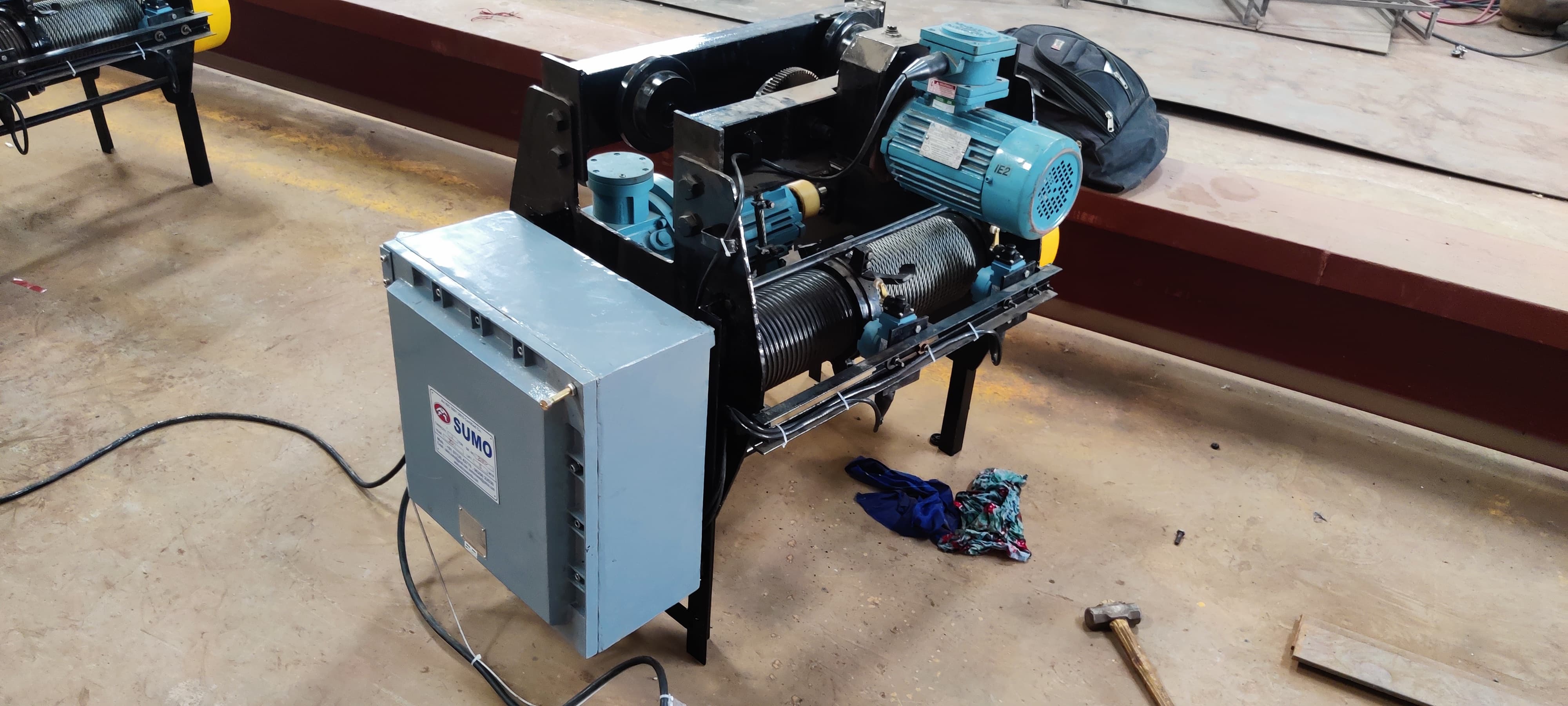

Flameproof
