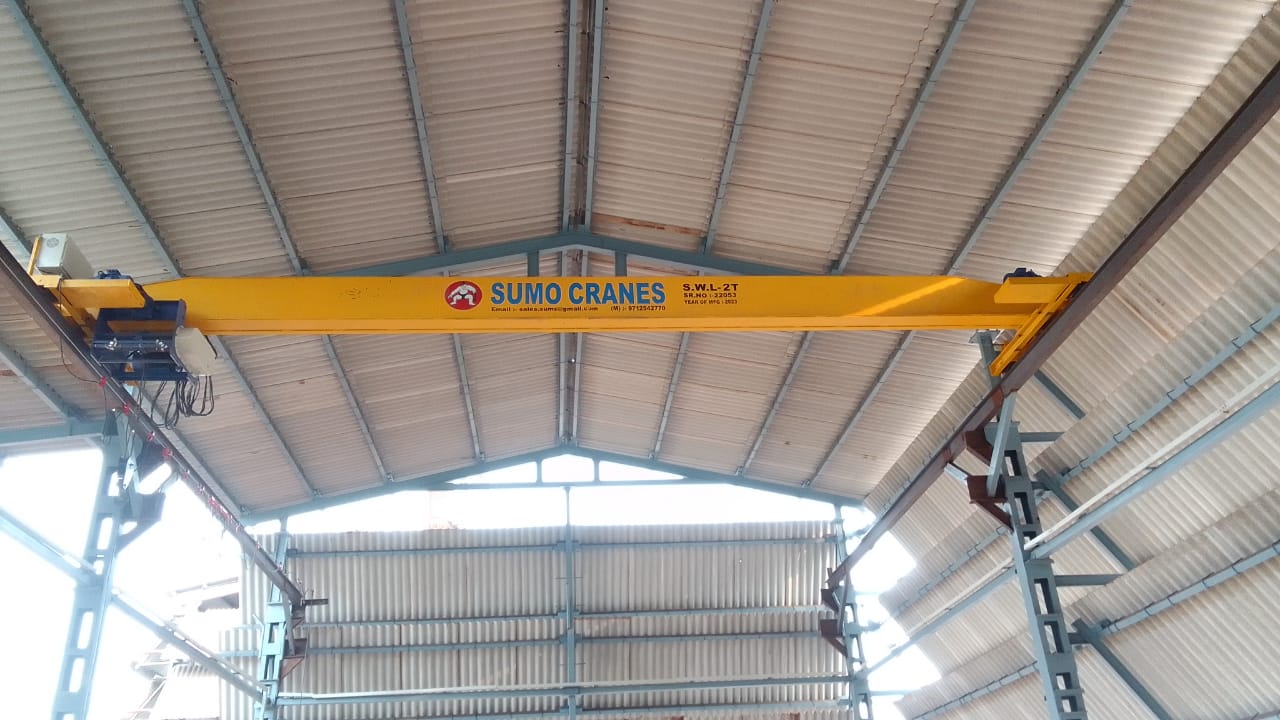

Single Girder E.O.T. Cranes
Manufacturing Range:
| Capacity | Span | Lift |
|---|---|---|
| 0.5 Ton to 40 Ton | 0.5 Mtrs. to 42 Mtrs. | 0.5 Mtrs. to 35 Mtrs. |

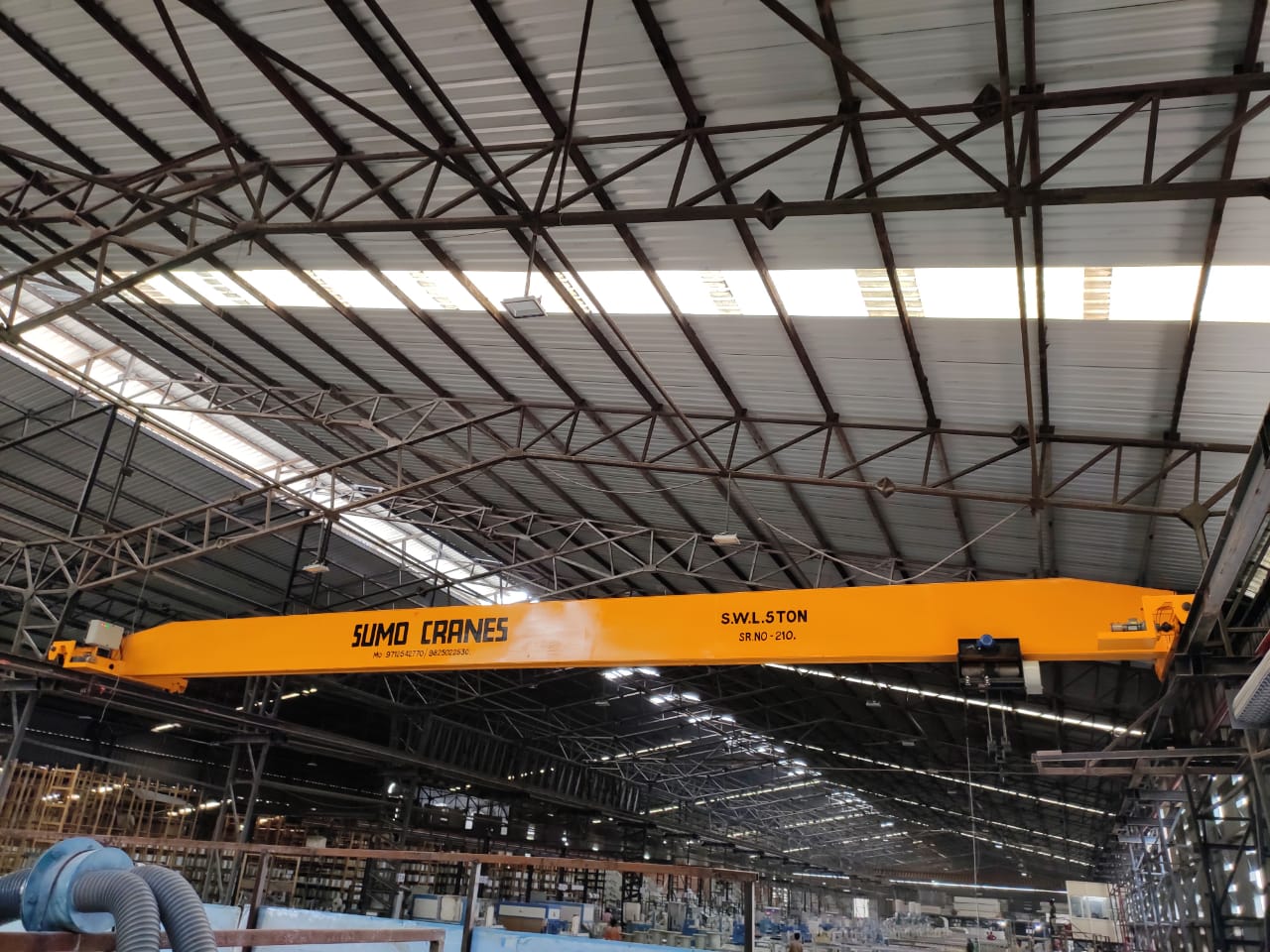

5-Ton Single Girder
DESIGN, FEATURES & SPECIFICATION:
The single girder overhead crane (S.G.EOT) is very convenient equipment for material handling even in the small production units and warehouses. The reduced wheel loads combined with very low headroom standard hoists provide outstanding value. These single girder cranes can fitted in different floor areas by using various fixing arrangements and modifications in design.
The accurate dimensions result in optimal hook position providing exceptional travel characteristic. Generally there is minimum safety distance with the ceiling of the building for overhead cranes with load capacity range of up to 10 T. This provides a typical advantages of utilizing the space at its best even in the buildings with unfavorable dimension.
We can design and efficiently install traveling cranes in available space by using different fixing arrangements. To accomplish the project with perfection, all we need is accurate dimension of the building during the planning stage. We specialize in custom designing cranes based on the specific needs of the clients.
STANDARD FEATURES
DESIGN: ‘SUMO’ Electric Overhead Traveling Cranes are designed & manufactured accordance with IS-807 & IS-3177, considering factor of safety in respect to appropriate class of duty.
MOTORS: The motors are used specially crane duty suitable for frequent starting, reversing & braking in accordance with IS-325. Motors are totally enclosed in dust proof construction foot / flange mounted TESC / TEFC , Sq. cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT & LT motions
BRAKES: Single/dual-disc/ shoe electromagnetic/ EHT brakes with features like automatic braking on power failure (FAIL SAFE).
GEAR BOX: The entire gear boxes are made of accurate hob cut helical / spur gears & pinions having hardness 250 to 350 BHN made from carbon alloy steel. All gears & pinions run on antifriction type ball / roller bearings in totally enclosed oil bath giving constant splash lubrication. The helical / Spur gear designed for adequate strength and optimum wear resistance for smooth operation & long life.
ELECTRICAL PANEL: Modular design, easy to install and maintain, reliable operation, fuse less circuitry, ducted wiring and compact terminals. Motor overload protection to prevent overloading.
LIMIT SWITCH: Safety limit switches for stoppers will be provided to prevent over traveling in all motions.
PAINTING: Two coats of primer before assembly & two coats of synthetic enamel after testing.
OPTIONAL FEATURES
- Variable speed through VVF Drive
- Soft starter
- Slipring motors.
- Wireless Radio Remote control
- Shrouded DSL system for power feeding.
- Flameproof.
